By static type
Type A
No static protection
Plain woven polypropylene with no static protection, the baseline bag, and often the right one.
Product description

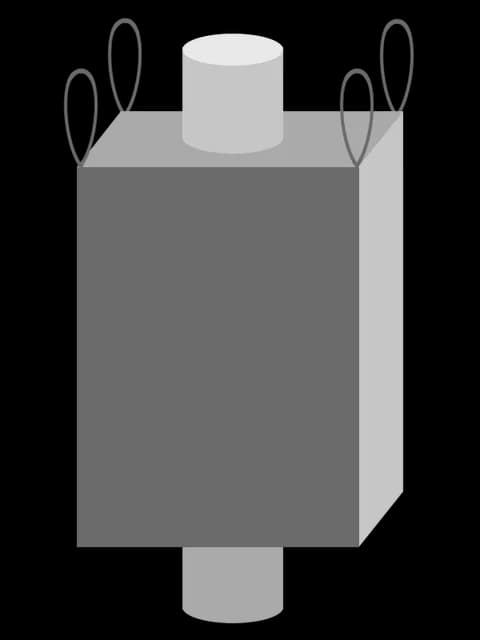

A Type A FIBC is standard woven polypropylene with no conductive or dissipative treatment of any kind. It carries no mechanism for controlling electrostatic charge, and none is needed for the majority of the material that moves in bulk bags.
Because there is nothing added to the fabric, Type A is the most affordable bag per unit and the fastest to produce. The decision to use one is not a cost decision, though. It is a hazard assessment. If there is no flammable atmosphere and no combustible dust anywhere in the surrounding area, Type A is correct.
Uses
- Non-flammable materials in non-hazardous environments
- Building aggregates, sand and gravel
- Non-combustible minerals
- Many food ingredients, where no combustible dust is present
Industries we supply this for: Sand, Mineral, Ingredients, Animal Nutrition
Do not use
- Flammable or combustible powders
- Any area where flammable solvents, vapors or gases may be present
- Environments where combustible dust can accumulate nearby
Important
Type A offers no static protection whatsoever. If there is any doubt about the atmosphere at your filling or discharge point, specify Type B, C or D and talk to us before ordering.
Configurable options
Everything below is specified per order. Nothing here is a fixed catalogue number.
| Construction | U-panel, four-panel, circular, two-panel, baffle |
|---|---|
| Top | Open, duffle, flap, spout, conical spout, double spout |
| Bottom | Flat, spout, conical spout, full bottom discharge |
| Loops | Corner (four-point), cross corner, double, tunnel, stevedore straps |
| Fabric | Coated or uncoated |
| Liner | None, loose, glued-in |
| Add-ons | Document pouch, sift-proof seams, safety bands, custom print |
Customizable options
Every option below is available on this product. They change how the bag fills, lifts and empties.
Lift loops
Corner loops
One loop sewn into each corner seam. The standard build, and the most affordable way to lift a bag.
Cross corner
Sewn into eight points across opposite corners, so the loops stand upright and the forklift operator is not fishing for four floppy straps.
Tunnel loops
A sleeve of body fabric spanning each side, corner to corner. The forks go straight through: the easiest pick where headroom is tight.
Stevedore straps
Double-layer straps across the corner loops, so the bag can be taken on one or two points instead of all four.
Double loops
Two lifting points instead of four, where that suits the load and the lift better.
Top
Spout top
A cylindrical spout sewn into the top panel. 14 in diameter by 18 in long as standard, sized to your filling head.
Spout top with flap
A spout top with a flap panel over it, tied down so the spout stays covered in transit.
Duffle top
A skirt the full width and depth of the bag, so the top opens completely and ties closed.
Flap top
A closed panel with a flap sewn along one seam, tied down over the mouth.
Open top
No panel at all. Fastest to fill where dust and weather are not a concern.
Conical spout top
A top panel that tapers up into the spout. Double spout tops are available too, specified to your filling equipment.
Bottom
Discharge spout
The standard 14 by 18 in spout, tied off. A wider spout is worth specifying for material that bridges.
Flat bottom
Closed base for product that is emptied by tipping or cutting.
Full bottom discharge
The whole base opens, for material that will not flow through a spout.
Spout protection
A flap, or a petal or iris closure, over the discharge, for when the spout must stay clean in transit.
Conical discharge spout
The base narrows into the spout, which helps product that is slow to flow empty completely. Specified to your equipment.
Add-ons
Baffles
Corner panels that hold a cube instead of a bulge: roughly 25 to 30% more volume in the same footprint, and it stacks safely.
Sift-proof seams
Filler cord sewn into the seam, for product fine enough to work through the stitching.
Document pouch
A sealed pouch for the paperwork which needs to travel with the bag.
Safety bands
A reinforcing band around the top, for added strength at the lift.
Custom print
Up to four sides, for branding and traceability on the line.
Liner
No liner
Fabric alone, where the product needs no barrier. The cleanest liner is the one you never have to specify.
Loose liner
Dropped in, not attached. Affordable insurance against fine powder finding the seams.
Glued-in liner
Bonded to the bag so it stays in place through filling and discharge, which is what a food or pharmaceutical audit expects to see.
Antistatic liner
Specify this inside a Type C or Type D bag, so the liner carries the same static classification as the fabric.
Foil liner
Designed for product that is filled hot, the foil laminate holds temperatures that would deform a polyethylene liner.
Fabric
Uncoated
Breathable, and the default build.
Coated
A thin polypropylene coat over the weave, for fine powder and moisture resistance.
Frequently Asked Questions
Is a Type A bag antistatic?
No. It has no static protection at all. The name is a classification, not a feature, Type A is the category for bags with no electrostatic control.
Can I use Type A for food?
Yes, where the material presents no combustible dust hazard. Food-grade is a manufacturing standard, virgin resin, clean room production, and is specified separately from static type.
How do I know whether my material needs more than Type A?
It turns on whether a flammable atmosphere can form at your filling or discharge point, and on your material's minimum ignition energy. If you do not have an MIE figure, send us the material and we will work through it with you.
Related products
Type B
Low breakdown voltage fabric that prevents propagating brush discharges, the most energetic discharge type.
U-Panel
One continuous panel forms two sides and the base, so the load is carried by fabric rather than by stitching.
Food Grade
100% virgin polypropylene resin, produced in certified clean room conditions.
Send us the load, not a part number.
Material, fill weight, how you fill and how you discharge. That is enough for us to come back with a specification.
